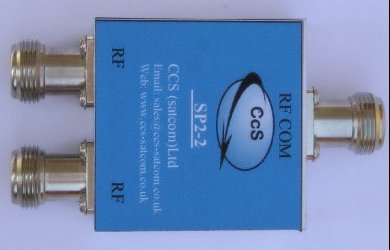

The SP-2-2 is a high performance combiner splitter designed for satellite IF signals. The case is machined from Aluminium alloy and has a Nickel plated finish. | ||||||
| Model | Freq range (GHz) | Insertion Loss | Isolation | VSWR | Unbalance (deg) | Unbalance (dB) | Impedance |
| SP-2-2 | 0.8 - 2.2 | 0.25/0.6 | 25/19 | 1.1/1.35 | 2 | 0.2 | 50 ohm |
|
Notes Input and Output Impedance: 50ohmsConnectors: N female or SMA Power <1w Case: Aluminium Alloy Operation Temp: -35 to +80C |
 |
