| The SMIS10B is a high performance Co-axial isolator designed for satellite signals. The case is machined from Aluminium alloy and has a Nickel plated finish. | |||||||
| Model | Freq range (GHz) | Insertion Loss | Isolation | Return Loss | Impedance (deg) | Operating power (dB) | Package |

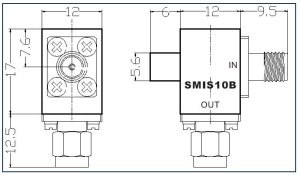

| SMIS10B | 10 - 14.5GHz | 0.5dB | 20dB | 18dB min | 50R | 1W | see below |
Notes
Input and Output Impedance: 50ohms| Home | Isolators home | Datasheet (pdf) | Contact |
