3.6 - 4.2GHz Co-axial Isolator SMIS04

				The SMIS10B is a high performance Co-axial isolator designed for satellite signals. The case is machined from Aluminium alloy and has a Nickel plated finish.

Model	Freq range (GHz)	Insertion Loss	Isolation	Return Loss	Impedance (deg)	Operating power (dB)	Package

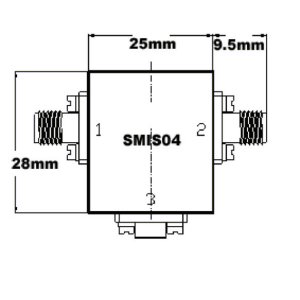

SMIS04	3.6 - 4.2GHz	0.5dB	20dB	22dB min	50R	Fwd 2W Rev 1W	see below

Notes

Input and Output Impedance: 50ohms
Connectors:SMA or N (F - M or F - F)
Case: Aluminium Alloy
Operation Temp: -35 to +70C
