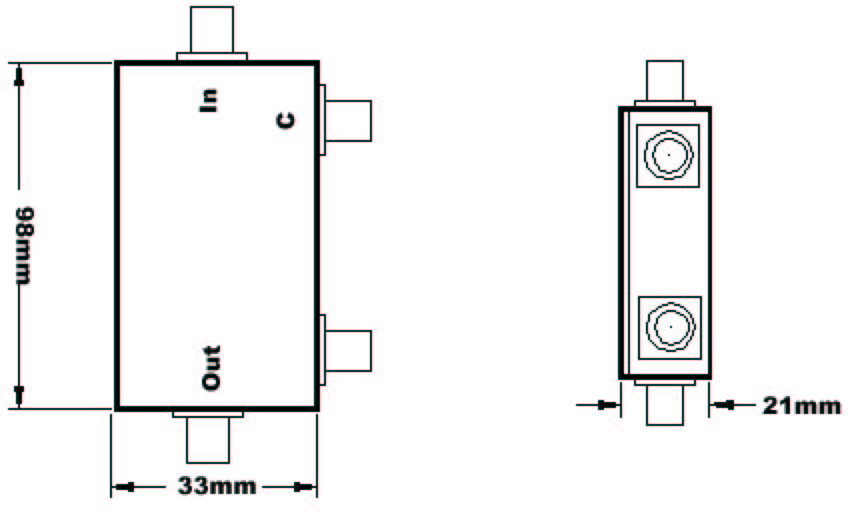

The DC-20-2-50W is a high performance Directional Coupler designed for satellite IF signals between 800MHz and 2.2GHz. Various body styles and connector combinations are possible. Most common is 20dB coupling but other coupling factors are available. The case is machined from Aluminium alloy and has a Nickel plated finish. Either N type or SMA connectors can be specified. |
||||||
| Model | Freq range (GHz) | Ripple (dB) | Coupling (dB) | Through Loss (dB) | VSWR | Directivity (dB) | Isolation (db) |
| DC-20-2-50W | 0.8 - 2.2 | ± 0.7 | 20 ± 0.7 | 0.5 | 1.3:1 | 15 | 18 min |
|
Notes Various form factors, Microstrip or AirlineInput and Output Impedance: 50ohms Connectors: N female or SMA Power <50w Case: Aluminium Alloy Operation Temp: -35 to +80C |
 |
