XRM2250 Matrix Switch

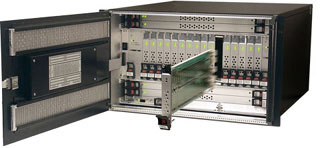

 The XRM 2250 Series of RF Matrices features a complete High Isolation 32x32 L band matrix, including hot-swappable cards, redundant power supplies, and system controller in a 6 RU chassis. The user can easily access cards for upgrades and maintenance via front panel without disconnecting cables or disrupting the signal paths of the other cards in the system. This provides for seamless online upgrades and maintenance. The modular design permits a wide variety of configurations ranging from 32x32 up to 512x512 and systems can be easily expanded in increments of 4 inputs or outputs. The XRM also offers the industry's widest array of control options.
Specification

 Parameter  XRM2250
 Operating Frequency  800-2250MHz
 Input Return Loss Typ  >15dB
 Output Return Loss Typ  >15dB
 Frequency Response  2.5dB
 Isolation  50dBmin
 RF Connectors  F type 75ohm (option BNC)
 Power supplies  Internal 90 - 264VAC, 47-63 Hz
 Mechanical (each unit)  6RU x19"wide x 20" deep
