Various powering pass thru and injection options are available
there are 2 way, 4 way, 8 way and 16 way versions available in 50 and 75 ohms
| Home | Splitters home | Datasheet (pdf) | Contact |
|
The SPG Range of splitters are high performanc splitters designed particularly for GPS use. The cases are machined from Aluminium alloy and have a Nickel plated finish. Either N type, BNC, TNC or SMA connectors can be specified. Various powering pass thru and injection options are available there are 2 way, 4 way, 8 way and 16 way versions available in 50 and 75 ohms |
||||||

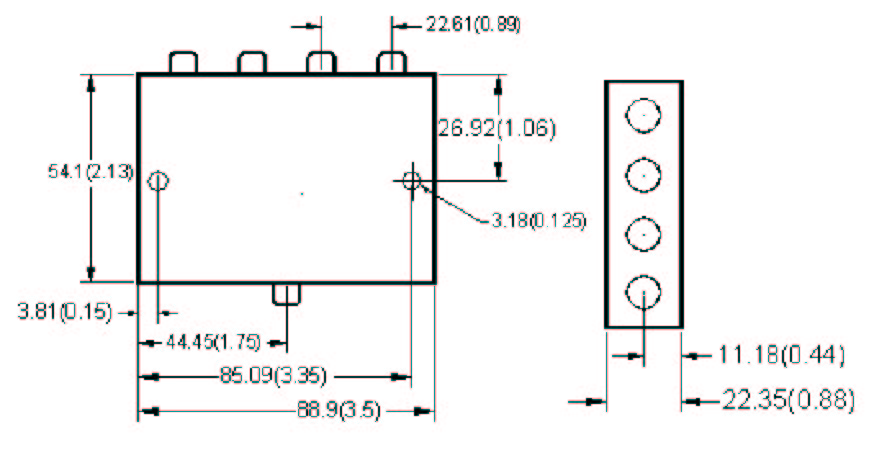

| Parameter (4 Way ) | Specification |
| Frequency range (MHz) | 800 - 2200 |
| Insertion Loss Typ/Max (dB) | 0.6/1.1 |
| Isolation Typ/Min (dB) | 25/20 |
| VSWR Typ/Max | 1.2/1.5 |
| Phase unbalance Max (deg) | 5 |
| Amplitude unbalance Max (dB) | 0.3 |
|
Notes Input and Output Impedance: 50ohmsConnectors: N female, SMA, BNC, TNC Power <1w Case: Aluminium Alloy Operation Temp: -35 to +80C |
 |
