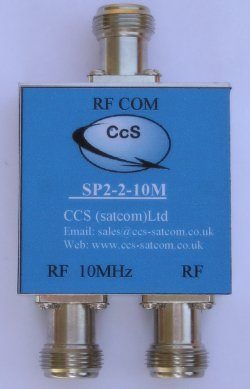

The SP2-2-10M is a high performance combiner splitter with a 10MHz and DC path designed particularly for VSAT use. The case is machined from Aluminium alloy and has a Nickel plated finish. Either N type or SMA connectors can be specified. | ||||||
| Parameter | Specification |
| Frequency range (MHz) | 800 - 2200 |
| Insertion Loss Typ/Max (dB) | 0.25/0.6 |
| Loss at 10MHz | <1dB |
| Isolation Typ/Min (dB) | 25/19 |
| VSWR Typ/Max | 1.1/1.35 |
| Phase unbalance Max (deg) | 2 |
| Amplitude unbalance Max (dB) | 0.2 |
|
Notes Input and Output Impedance: 50ohmsConnectors: N female or SMA Power <1w Case: Aluminium Alloy Operation Temp: -35 to +80C |
 |
